Shane's 97 Cobra 4V MPT70 (done) (many pics)

[Anthony Fury]

Shane's car has had a KB blower on it, then a Vortech (I think), and now it's turbo time. Goal is to make more power with less boost and have more "thump" where the little 4.6 needs it most. We (Shaun and I) lucked out - no accessories to dodge. And still, there was a lot of junk to re-locate (all of the radiator hoses, pass. side coil, etc) to move. Anyway, got it running on Sat. nite, drove it home last Sunday. From a running car pulling in to a running car leaving, this took about 5 solid weekends. Shane is a real stand-up guy and was always there to get us lunch. Best of all though, is if we came up with a better way of routing something, and it involved buying new/different stuff, he was all about it.

We laid it out thinking he'd outgrow the MPT70, so later on, with a flange swap and a little more downpipe strategy, he (meaning: we) will be able to slap in something with a T6 footprint. (We verified this with the Mack dumptruck Schwitzer we use as a doorstop around the shop.)

Breakdown is:
MP T70 w/ .96 turbine
MagicBus Modular headers
JGS 38mm WG (awesome)
Ebay BOV
RPS silicone couplers and adapters
VS Turbo blanket (extremely awesome)
-3 feed, -10 drain (Function 7 adapters)
(Shane will fill in the rest)

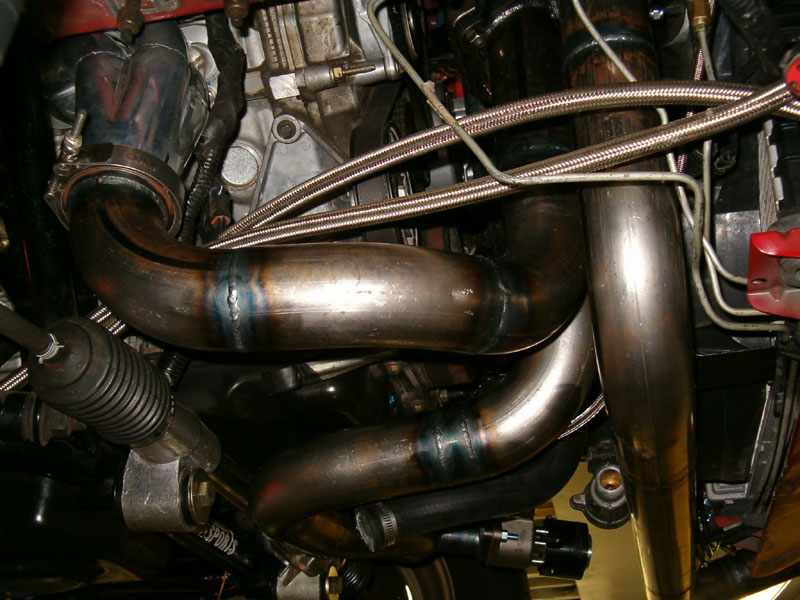

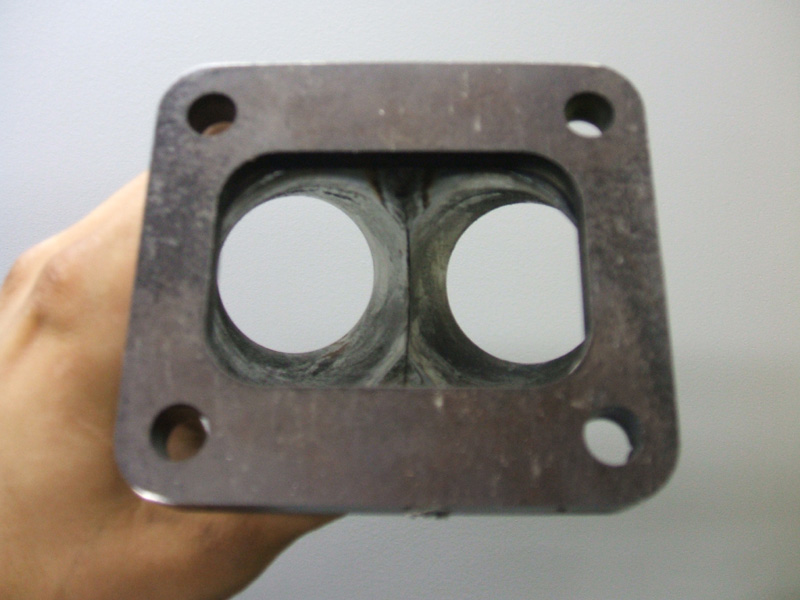

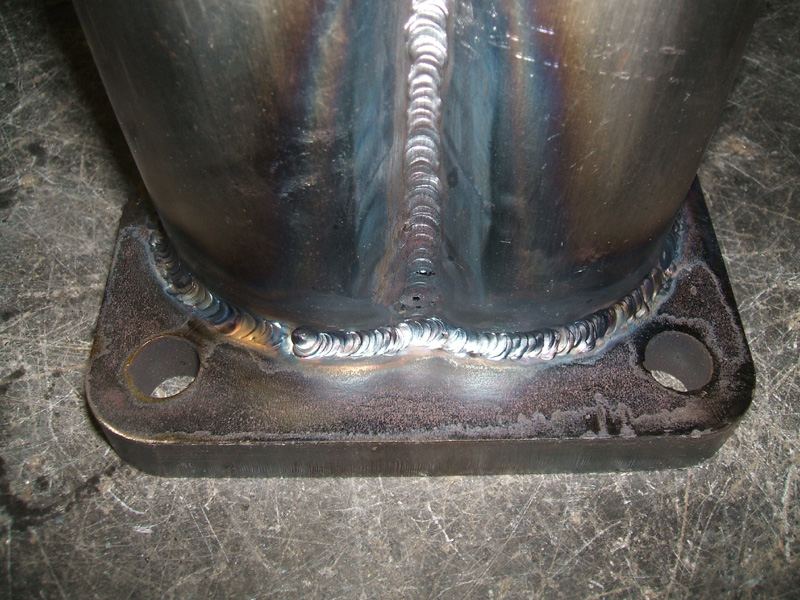

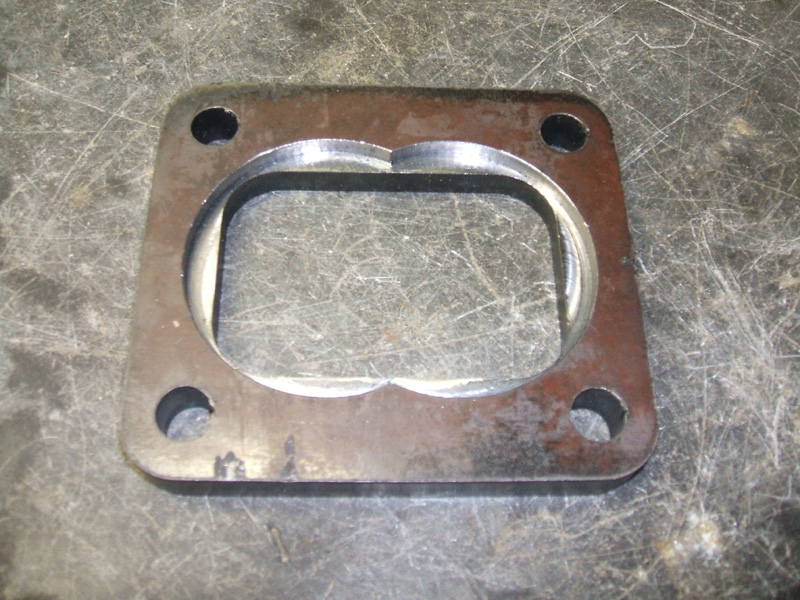

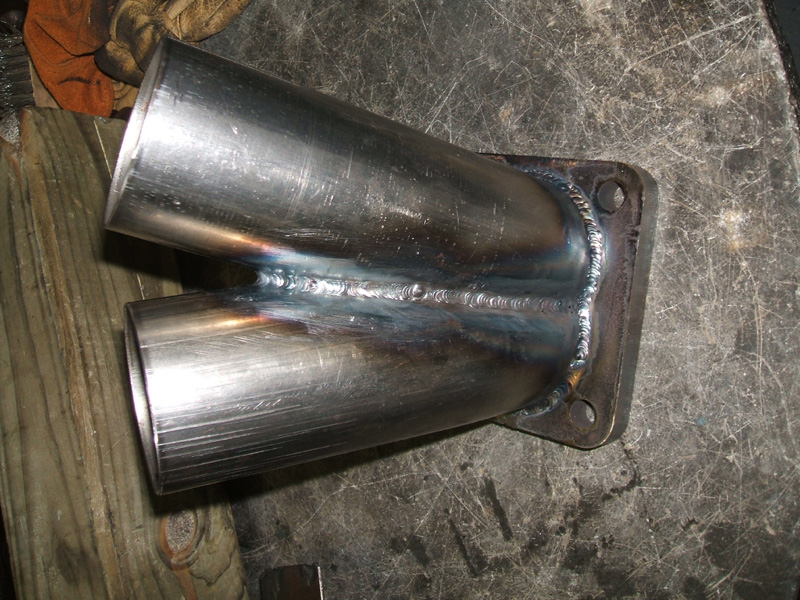

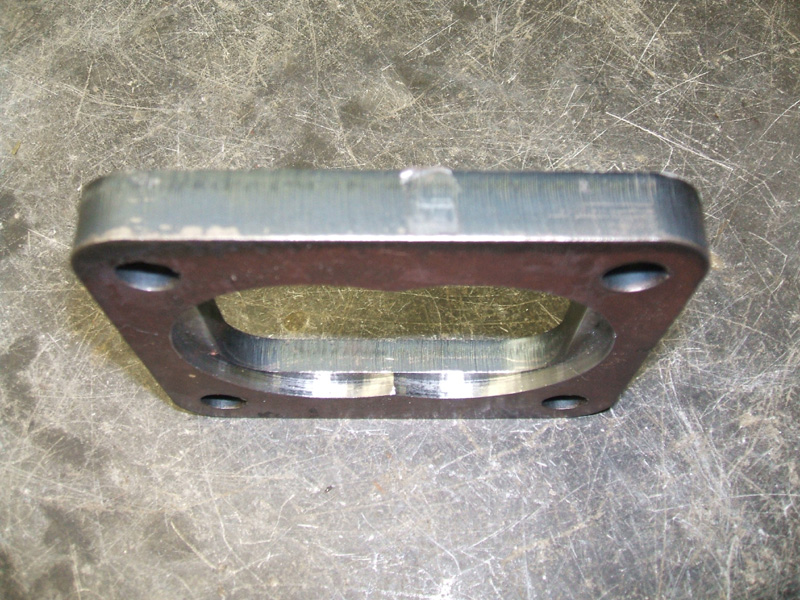

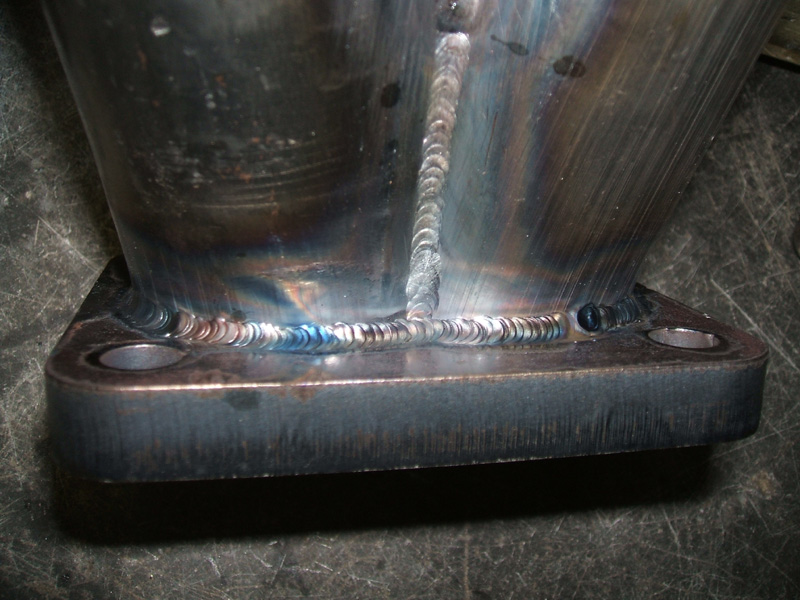

Started with the flange and connected the dots. CNC'd a "seat" for the two pipes, welded, and then blended the square area in later.

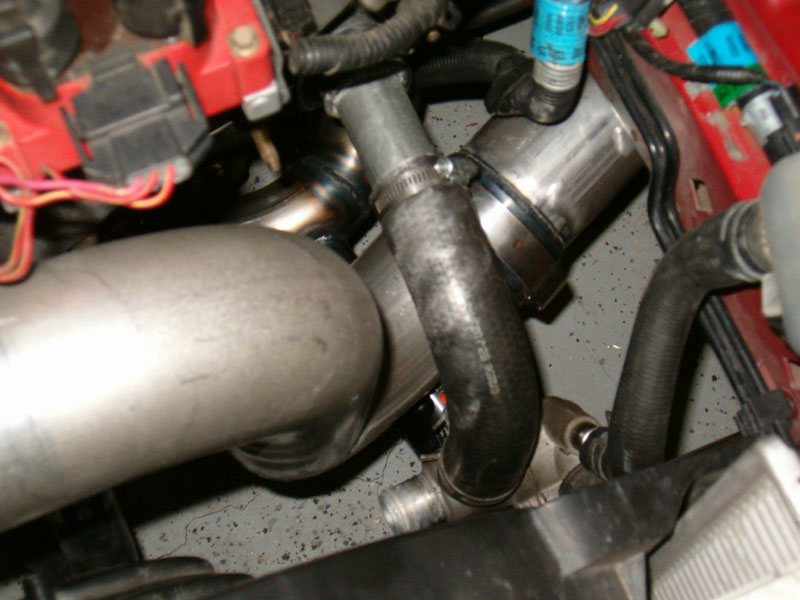

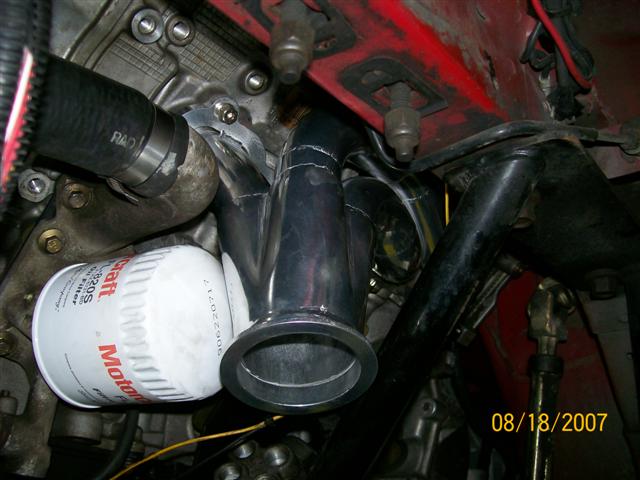

Oil filter clearance was tight with the particular oil elbow Shane had on there, but we found another Bosch filter (not pictured) with a healthy amount of clearance.

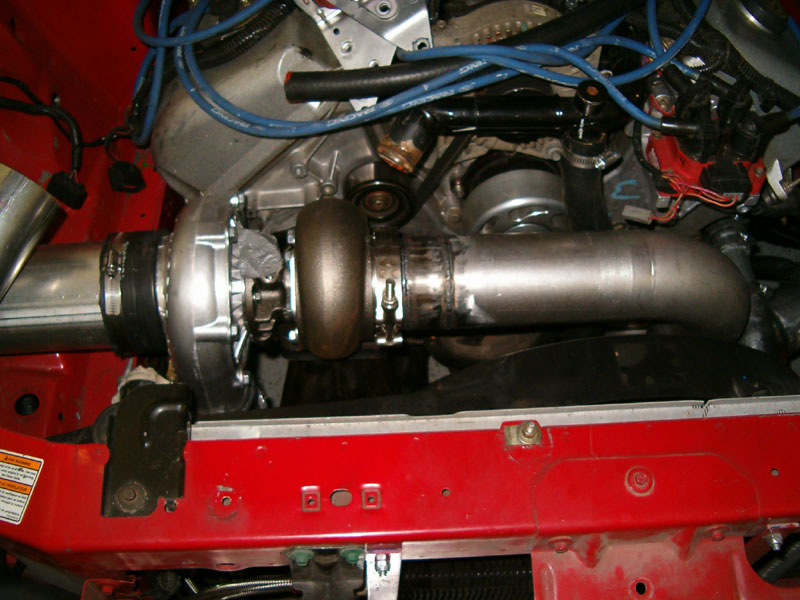

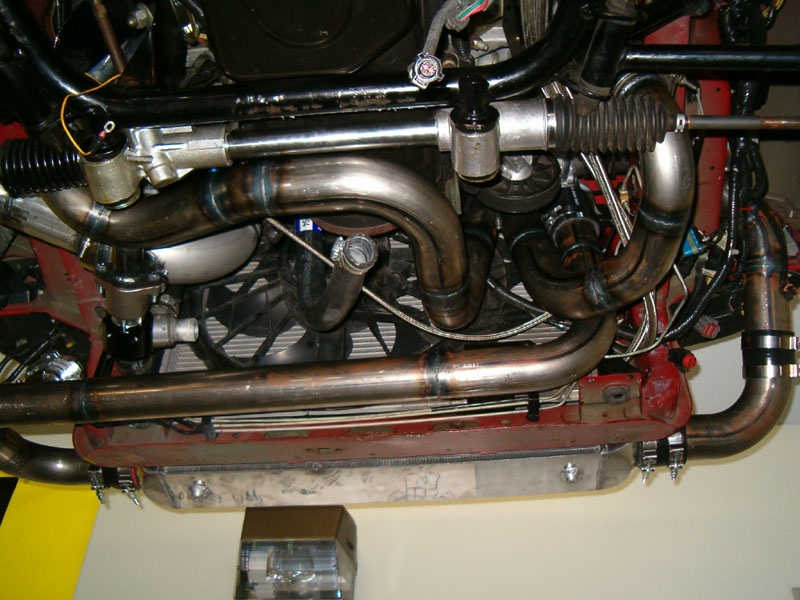

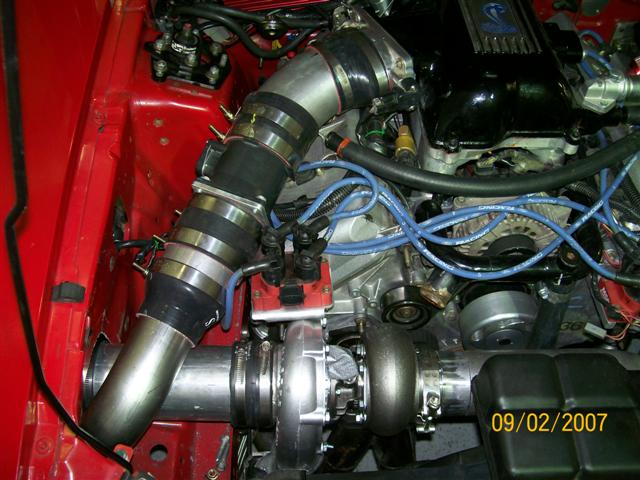

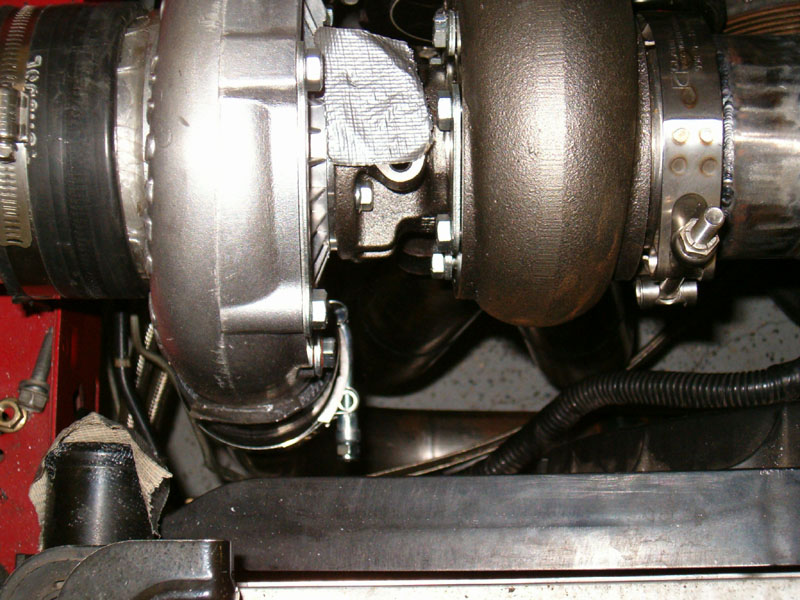

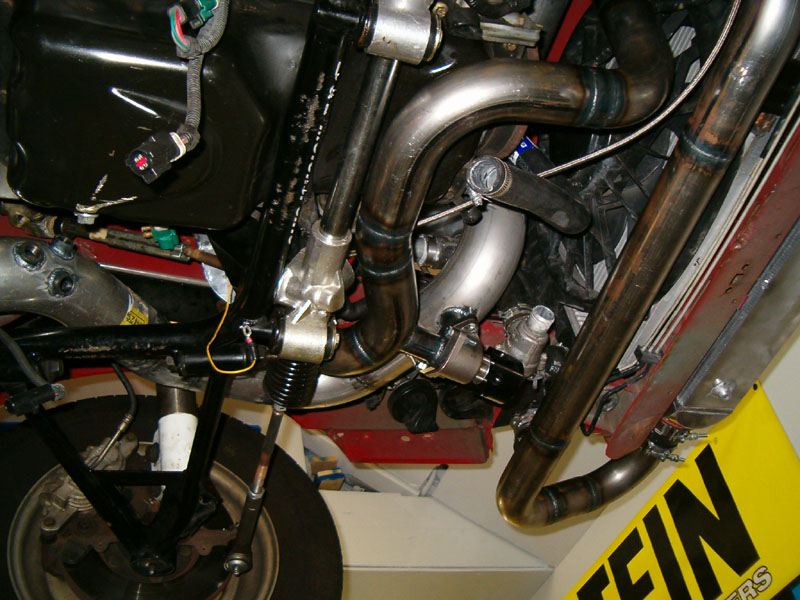

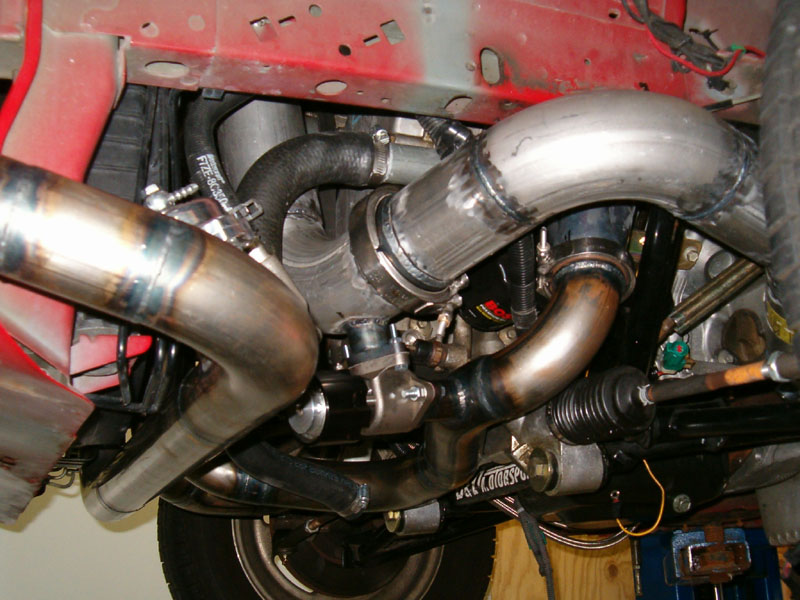

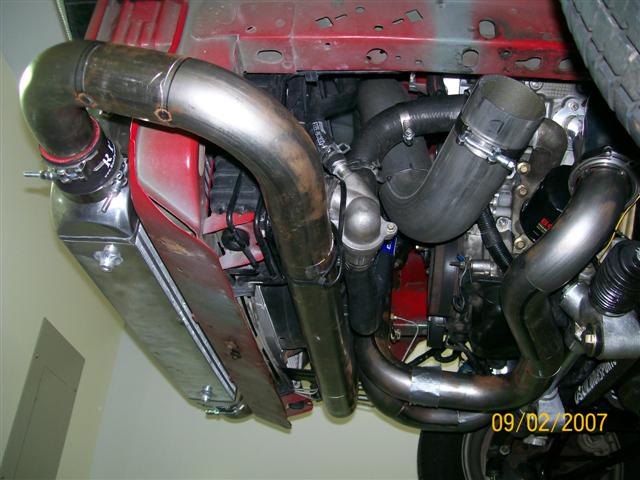

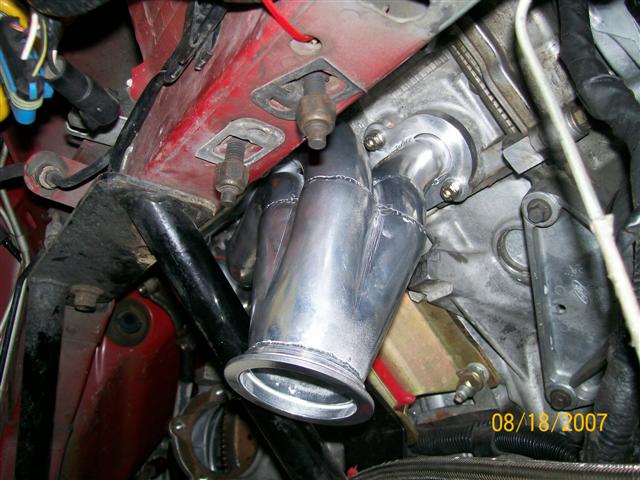

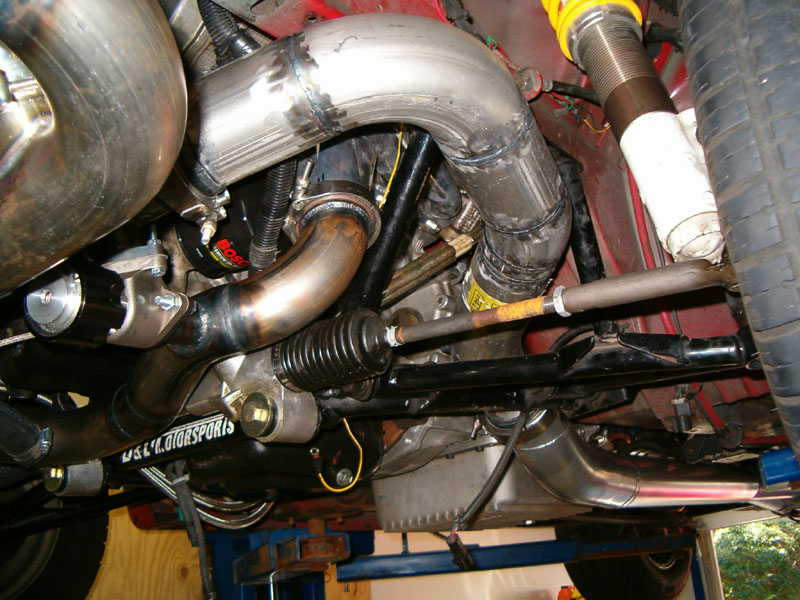

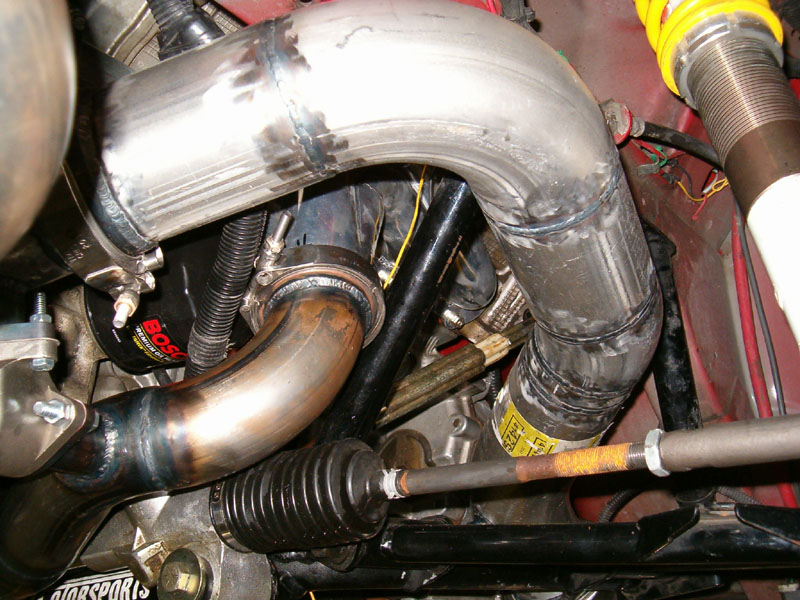

Here's a couple of mockup shots with part of the coldside, part of the DP, and the crossovers:

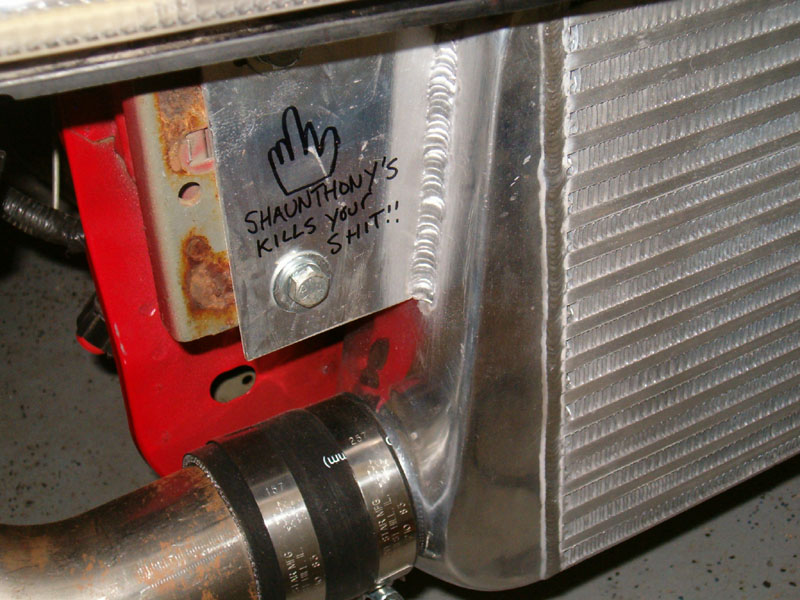

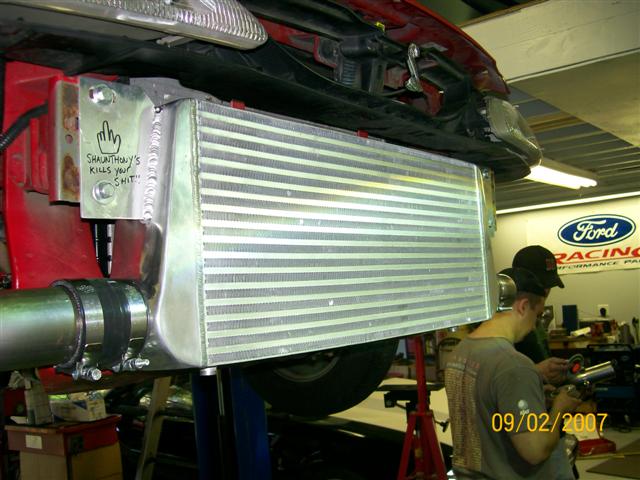

We didn't have to move the bumper to fit the intercooler; the bumper IS the intercooler now!


Edited for chronological purposes:

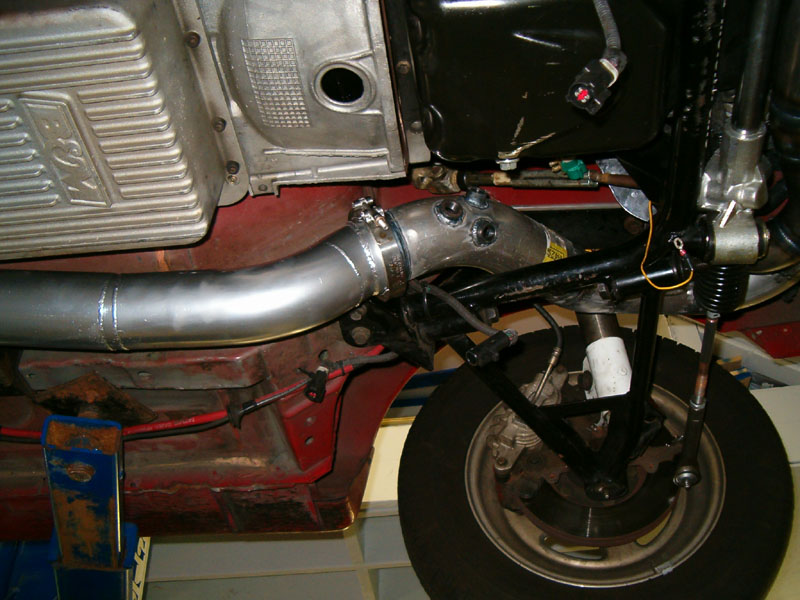

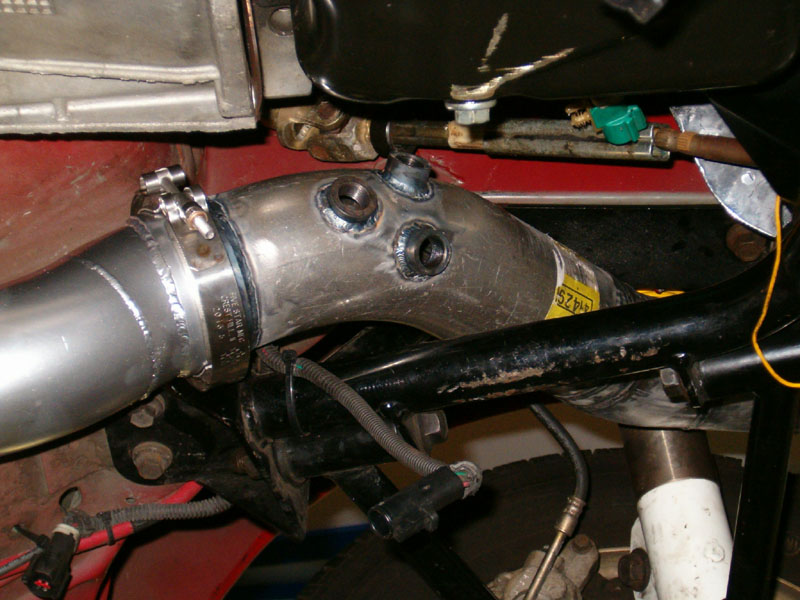

O2 Sensor farm!

[TwinTrouble]

More pics of the kit before everything was wrapped and installed are coming soon!  We just need to get them from shane, so check back.

-Shaun

[Anthony Fury]

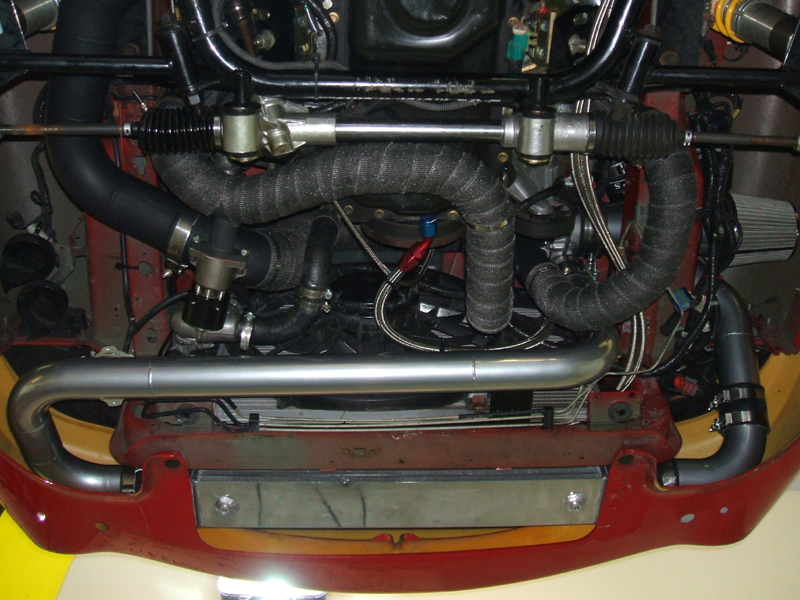

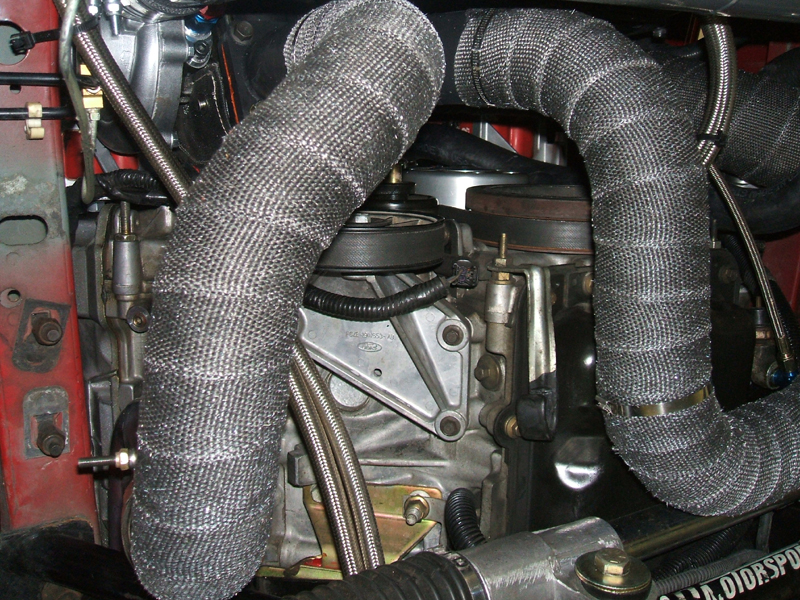

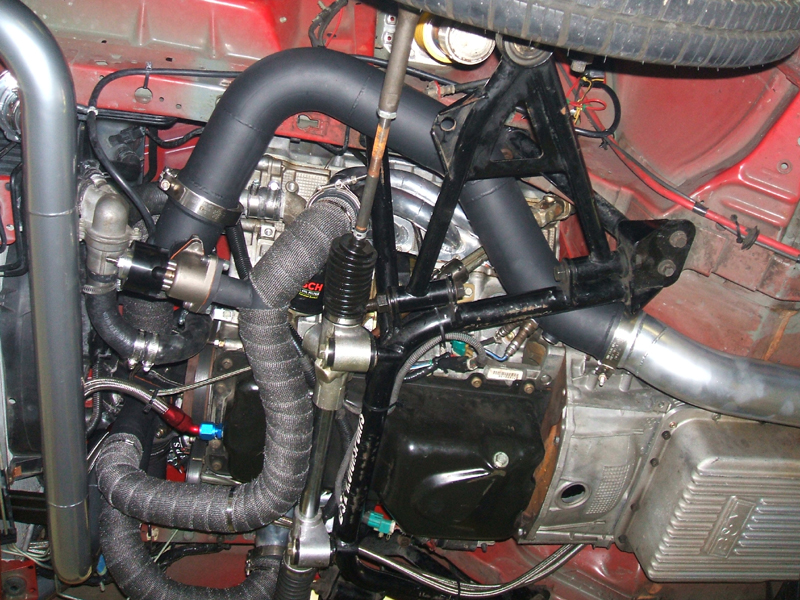

Here it is, back from the coater and wrapped (guess we will test out the whole "wrap + coating = rotting" theory huh?)





Shane, to us: "Did you guys turn the wheel to see if the DP would clear?" Of course not!!! Who would check that?

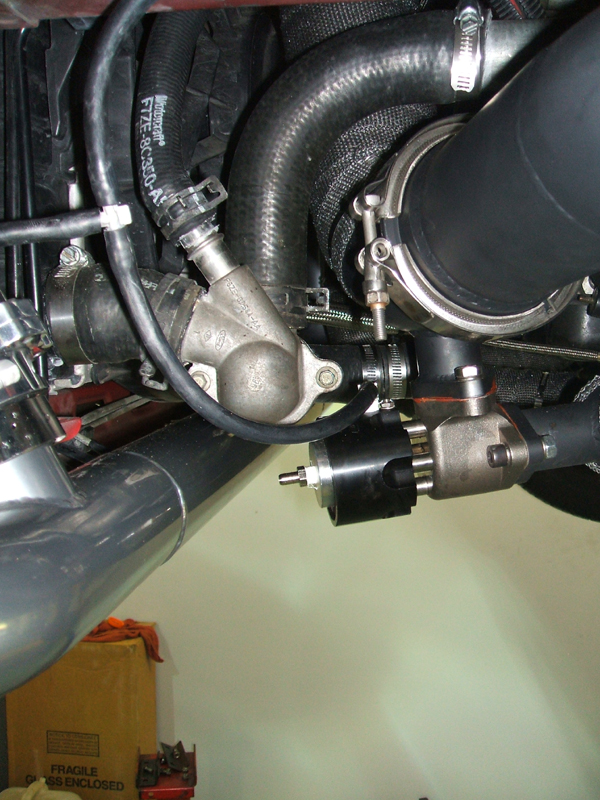

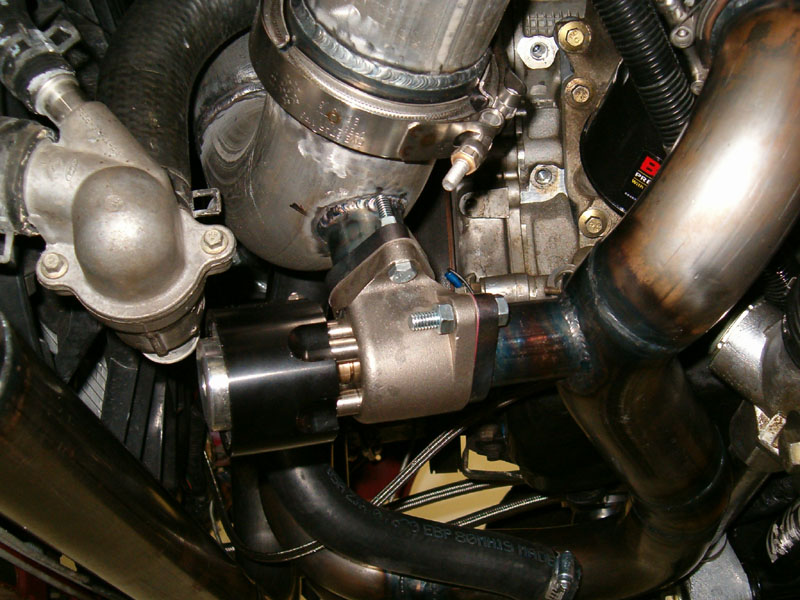

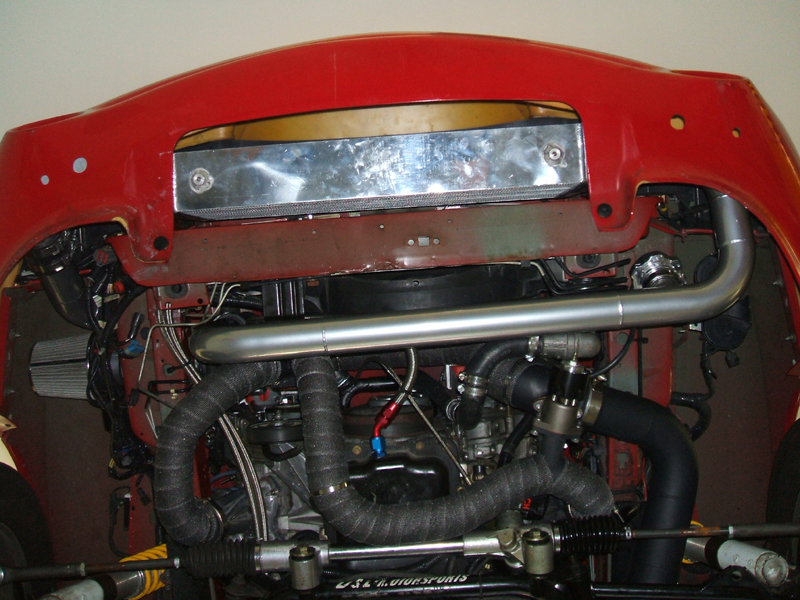

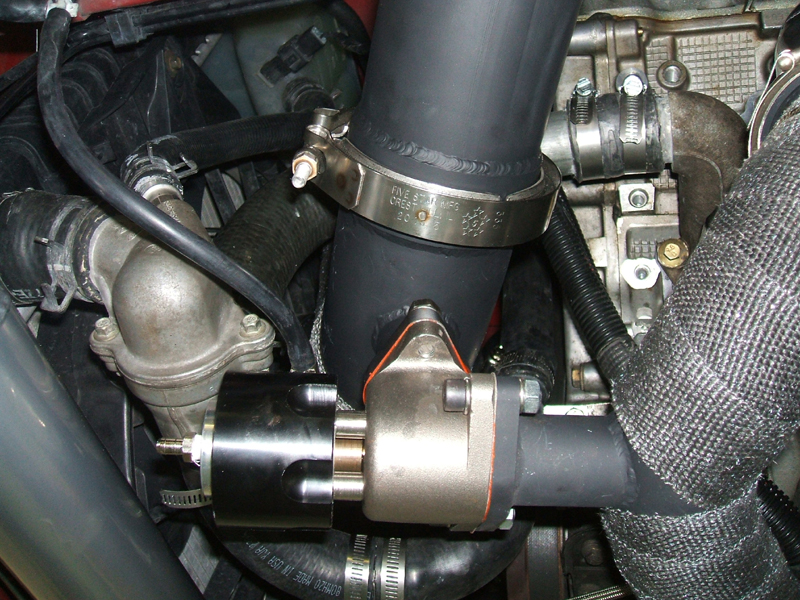

We thought this was a good idea - the downpipe cruised right past the crossover, so we thought "Hey, great place for the wastegate." The real bonus is that it essentially "locks in" the clocking of the downpipe, so everything bolted right back in the way it came out.

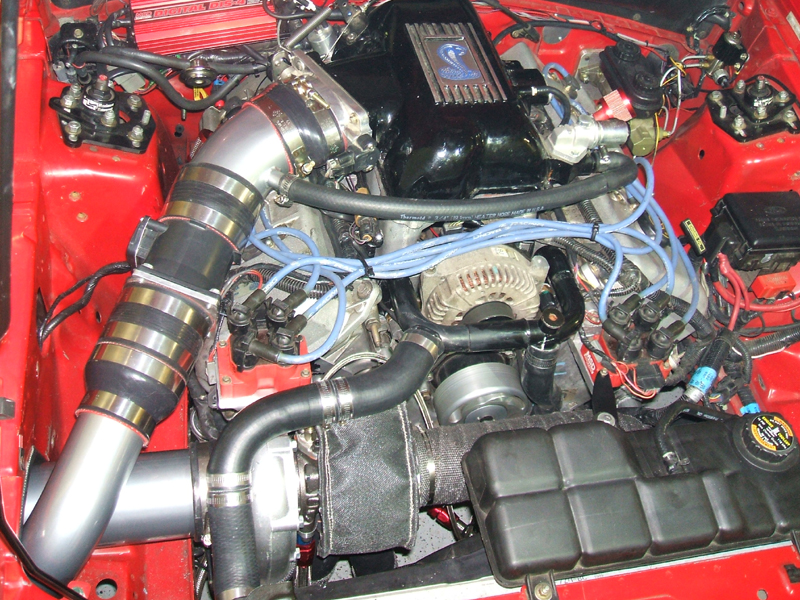

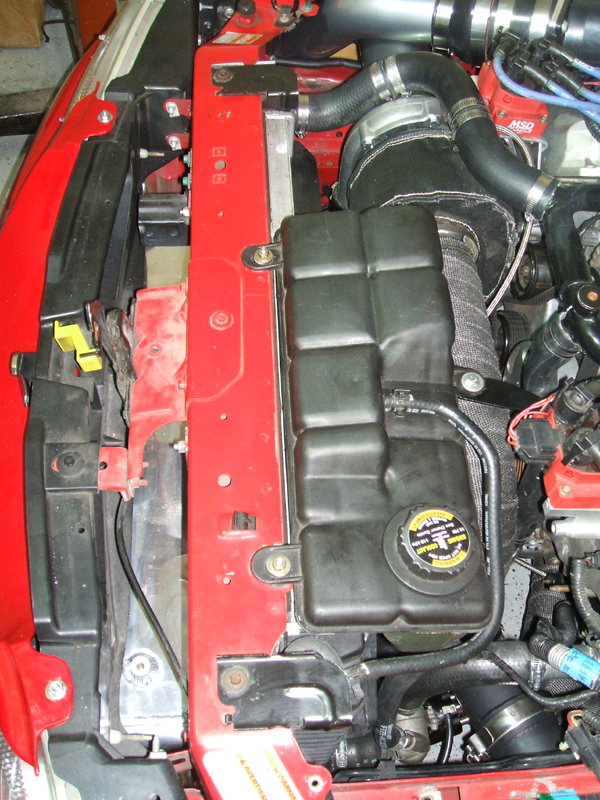

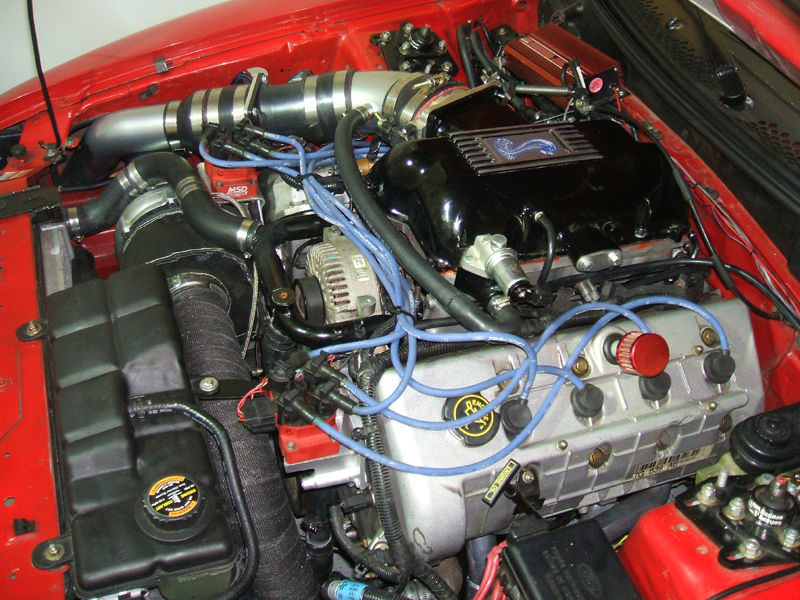

From the top:

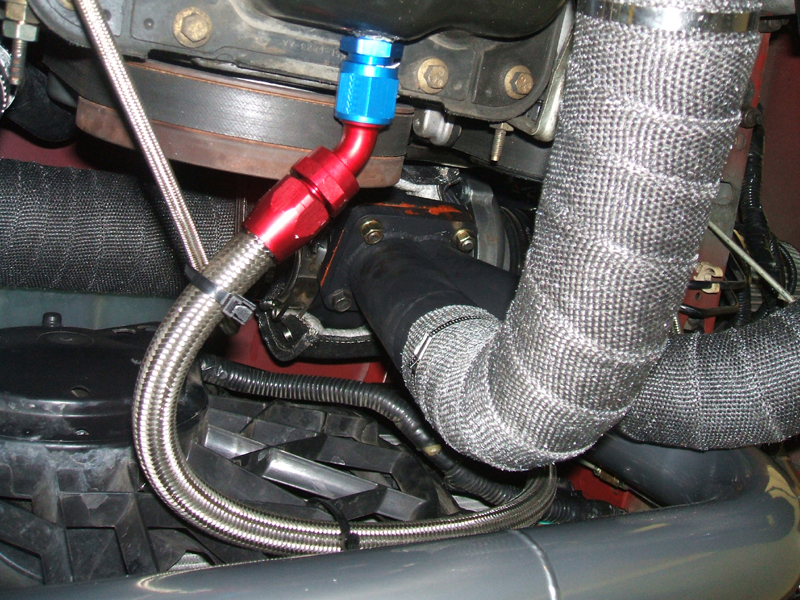

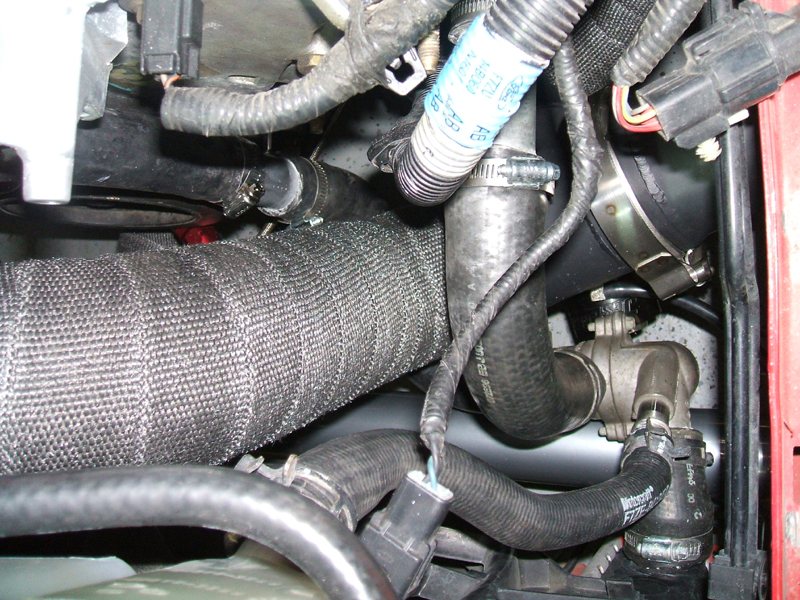

There is an inch of clearance between the downpipe and everything else. Turbo blankets are THE BOMB!!!! Even after running down the road a few miles for lunch, the radiator hoses were hotter to the touch than the wrapped DP and wrapped turbine. Shane says he will relocate the coils under the intake to clean the look up a bit.

Shane is swapping the rear gears out, and then it's going to the dyno Wednesday. Predictions? I think he is going to try and race it this weekend as well. Results and timeslips to follow!

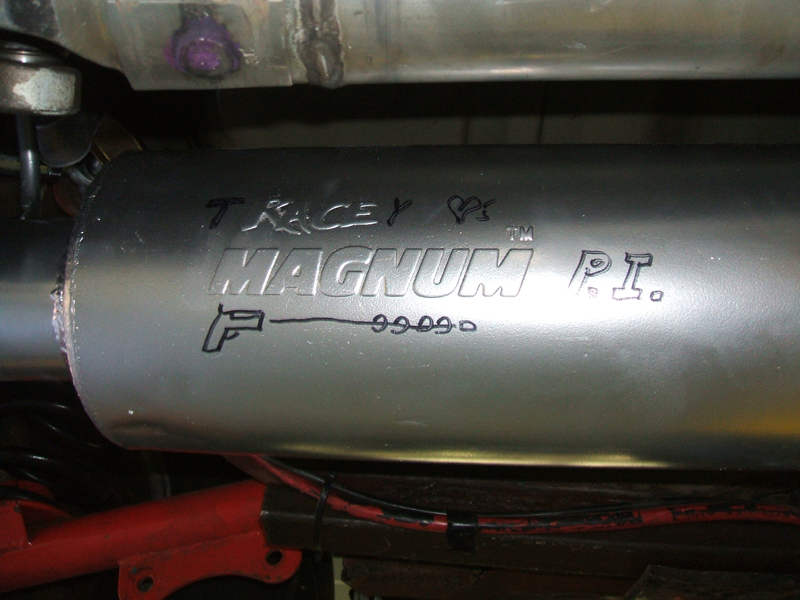

P.S. Tracey loves Magnum P.I.!

[BigTurboNotch]

awesome job, fab work looks great.

[DaOnE51T]

nice build, great welding.

[1fast-turbo-coupe]

excellent fab. work. and very clean install. so the turbo blanket is worth getting? i dont see that many all out race cars running them are they a street car thing?

[ralphiejantz]

Looks good very nice clean install and fab work

[TwinTrouble]

Thanks for the kind words guys, we really appreciate it.

1fast-turbo-coupe - so far the blanket seems to really do a good job, time will tell how it holds up.  I'm sure the fact that the turbine is coated doesn't hurt either.  But as im sure you know, anything you can do to keep heat in the hot side and to keep under hood temps down is a bonus.

More pics of the kit post-coating, pre-wrap in the next day or so.

-Shaun

[MagicBus]

Looks great, and I'm sure it'll make a little power

-Mike

[DaOnE51T]

what kind of welder were you using?

[Shane97Cobra]

First off I have to give a HUGE thank you to Shaun and Anthony.  Thier work is great and nothing is rushed, it is all well thought out.

The car is still a stock 97 Cobra longblock, so it's only going to see 8PSI the rest of this season.  So don't expect too much just yet.  Next season has a good shortblock and fuel system in the plans, lets hope the funds are around to make it a reality.

The car usually ran 11.4x-11.6x w/ the blower, it was tuned very conservativly due to the fact that I was competing in a 11.60 index heads up class all summer.  Just for a reference as to how conservative.  On 10 PSI it made 399/323, this is through a 4R70W and not locking up the converter.

[TwinTrouble]

what kind of welder were you using?

My welder is a miller synchrowave 180SD.  We have access to an old sine wave 500amp miller tig, but we didn't need to use that at all for this project.

[97svtsnake]

How much are magic bus headersif you don't mind me asking?

[MustangMitch]

How much are magic bus headersif you don't mind me asking?

http://www.turbochargedinnovation.com/

[SC96COBRA]

 It is tuned yet?  What size is your downpipe?

[Shane97Cobra]

It is tuned yet?  What size is your downpipe?

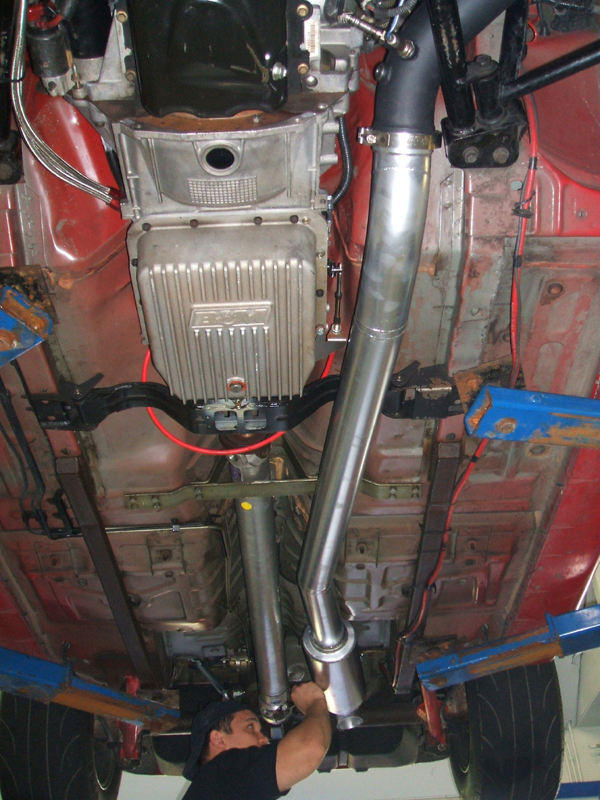

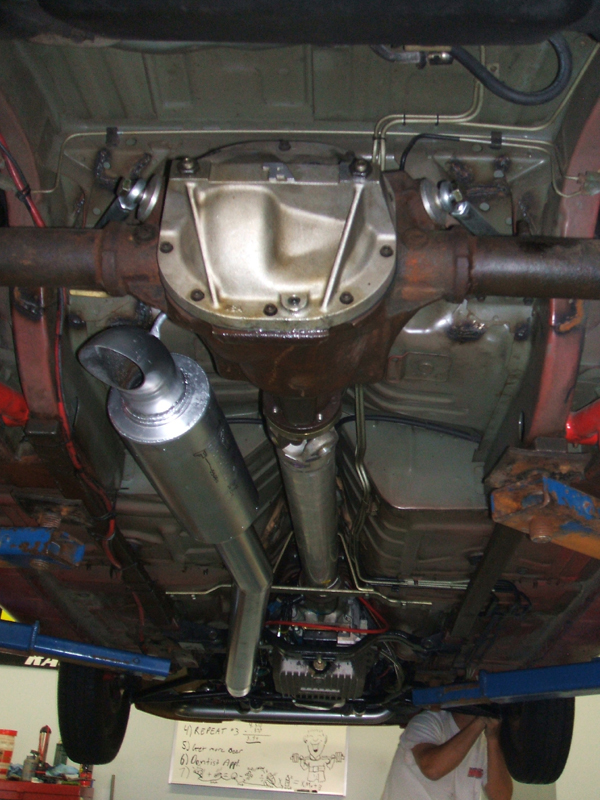

It's a 3.5" downpipe, and is single all the way back to a 3.5" Dynomax Race Magnum dumped.

Bob Kurgan from Kurgan Motorsports had it on the dyno today.  Just to remind you all this is still a stock shortblock, so we didn't push it hard.

It made 429/397 SAE, 444/409 STD on 11 PSI.  The A/F was about 11.8 w/ a sniffer, and this dyno reads a little lean, so prolly closer to 11.6.  Only about 14.5-15 degrees of timing.  The TQ is a little lower than I expected, but I'm guessing the HCI shortrunner intake it robbing some of that and the converter in the car was designed around my blower and is to loose for the turbo.  The converter isn't catching up till 5300 and I think it has missed peak TQ by then.  I don't plan in sending it in till winter when a good shortblock goes in.

I just tried scanning the dyno sheets on my fax machine and they turned out like garbage, you can't even see the TQ lines.

[SC96COBRA]

thanks for the reply, it looks awesome.  I'm running a single t70.  Looks pretty much like yours but I used a different MAF and my downpipe is 3' and routed a little bit different.

[turbo96cobra]

this is awsome, gives me more insentive to finish my car off, now wondering, what tuning system, maf and aftermarket k member you were using, also what kind of ignition system, i want to get the right parts now, im turboing my 96 svt and would like to do it right, also where did u get your headers, and are u running forged internals? thanks for any help, setup looks sick and i hope to have somthing half as nice soon lol. -blake

[Shane97Cobra]

this is awsome, gives me more insentive to finish my car off, now wondering, what tuning system, maf and aftermarket k member you were using, also what kind of ignition system, i want to get the right parts now, im turboing my 96 svt and would like to do it right, also where did u get your headers, and are u running forged internals? thanks for any help, setup looks sick and i hope to have somthing half as nice soon lol. -blake

The headers where made by Magicbus from this site.  His company website is: http://www.turbochargedinnovation.com/
They are very nice and you can't beat the price.

We use SCTs software to tune the car, Bob Kurgan does the tuning.  I am also using their BA2400 meter, we had to put a Diablo MAFia on it since we did blowthru.  It was nearly pegging the meter.  If you designed the system to be draw thru you shouldn't have any issues with it.

The car has had a D&D Tubular K member and A-arms on it for years, any aftermarket K should work just fine.  Especially with these headers.

I have a MSD DIS4 ignition on the car.  I have it for the 2 step, otherwise a Kenne Bell Boost-A-Spark would be fine.

I'm still on stock internals, other wise we would have tried to get in the turbos sweet spot a lot better.

[montelius]

Looks awesome Shane!

[SC96COBRA]

We use SCTs software to tune the car.  I am also using their BA2400 meter, we had to put a Diablo MAFia on it since we did blowthru.  It was nearly pegging the meter.  If you designed the system to be draw thru you shouldn't have any issues with it.

Wow I though you would have got little more HP before it pegs.  I guess I made a good choice on which MAF to run.  I still have 100-150 hp more before it pegs without an extender.  BTW mine made 540 @14 psi.

[Turbo Slant 6]

That is a very nice and clean fab job. You guys do awesome work!

[Shane97Cobra]

Wow I though you would have got little more HP before it pegs.  I guess I made a good choice on which MAF to run.  I still have 100-150 hp more before it pegs without an extender.  BTW mine made 540 @14 psi.

How much timing was in your tune and where did it make peak HP and TQ?  I'm assuming you have a 5 speed also?  I think the auto is robbing some power in my set up.

[66Notch]

That merge is one of the best ive seen.  Very nice!

[someguy80]

So Shine how fast did it go this weekend????
